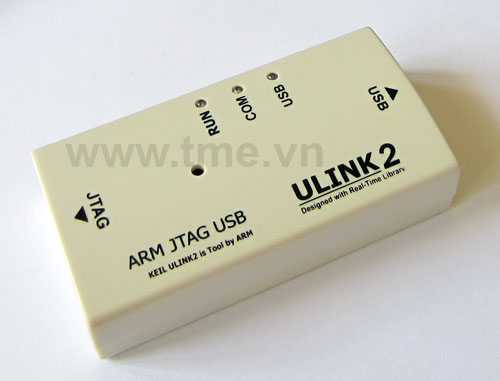

Debug Adapter  TMe_ULINK2_Manual_Vi.pdf (Tiếng việt)

• Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
• JTAG speed up to 10MHz
• Serial Wire Debug (SWD) support for ARM Cortex-M based devices
• Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
• Real-Time Agent with memory R/W during execution, terminal emulation, and serial debug output
• Seamless integration with the Keil µVision IDE & Debugger
• Wide target voltage range: 2.7V - 5.5V

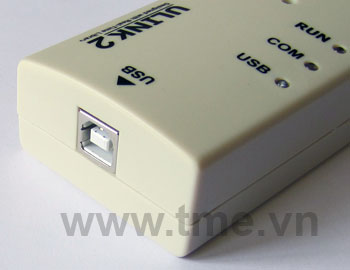

• USB powered (no power supply required)
• Plug-and-Play installation using standard Windows USB drivers
• Target Connectors
  • 10-pin (0.05") - Cortex Debug Connector

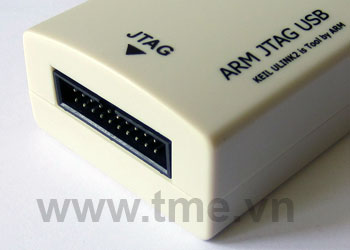

  • 20-pin (0.10") - ARM Standard JTAG Connector

ULINK2 may be used for:

• On-chip Debugging (using on-chip JTAG, SWD, or SWV),
• Flash Memory Programming (using user-configurable Flash programming algorithms).

Using the ULINK2 adapter together with the Keil µVision IDE/Debugger, you can easily create, download, and test embedded applications on target hardware.

Note ULINK2 support is available in:

• MDK 3.04 or higher,
• C51 8.15 or higher,
• C166 6.06 or higher.

Supported Devices
For the ULINK2 USB-JTAG Adapter

• Use the Parametric Search to find microcontrollers that meet specific criteria.
• Use the Device Database Problem Report to report a device that is not listed.
