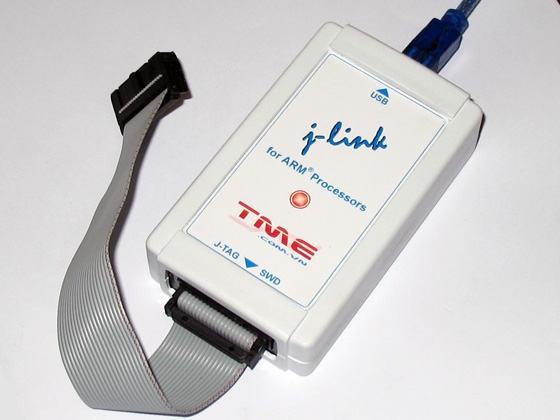

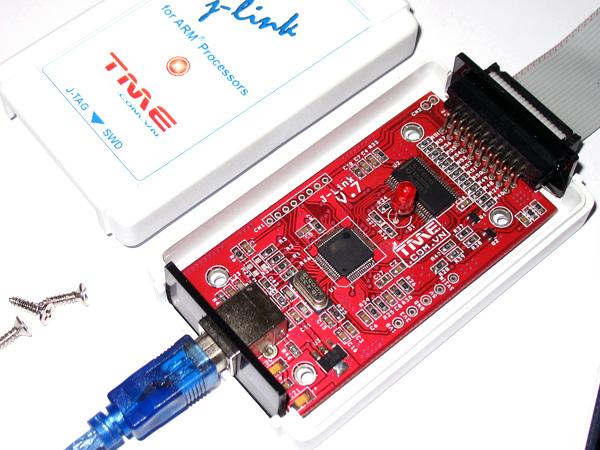

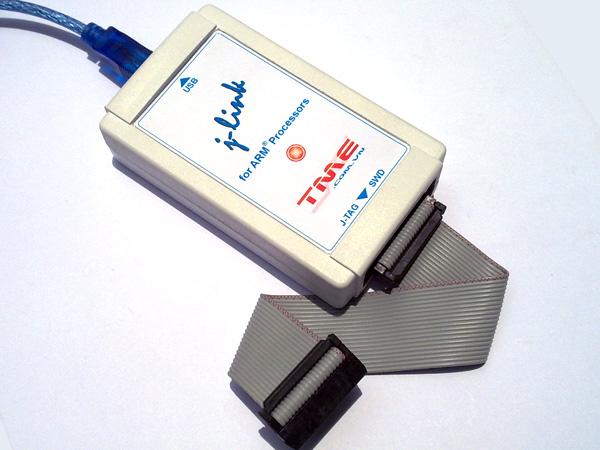

J-LINK ARM V7
J-Link là một JTAG Emulator cho ARM core qua cổng USB 2.0 tốc độ cao
Công cụ tuyệt vời dùng Program và debug cho ARM7/ARM9/ARM11, Cortex™-M3 core...
- Bảo hành: 12 Tháng
- Kèm theo: CD, Cable USB 2.0 and Flat cable 10x2
Features:
- USB 2.0 interface
- Any ARM7/ARM9/ARM11, Cortex™-M3 core supported, including thumb mode
- Serial Wire Debug (SWD) supported *
- Serial Wire Viewer (SWV) supported *
- Automatic core recognition
- Maximum JTAG speed 12 MHz
- Download speed up to 720 Kbytes/second **
- DCC speed up to 800 Kbytes/second **
- Seamless integration into the IAR Embedded Workbench® IDE
- No power supply required, powered through USB
- Support for adaptive clocking
- All JTAG signals can be monitored, target voltage can be measured
- Support for multiple devices
- Fully plug and play compatible
- Standard 20-pin JTAG connector
- Wide target voltage range: 1.2V - 3.3V, 5V tolerant
- USB and 20-pin ribbon cable included
- Memory viewer (J-Mem) included
- RDI interface available, which allows using J-Link with RDI compliant software
- Flash programming software (J-Flash) available
- Flash DLL available, which allows using flash functionality in custom applications
- Embedded Trace Buffer (ETB) support
- Target power supply: J-Link can supply up to 300 mA to target with overload protection
* = Supported since J-Link hardware version 6
** = Measured with J-Link Rev.5, ARM7 @ 50 MHz, 12MHz JTAG speed.
