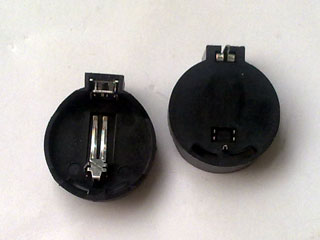

Single Cell Battery Holders
Suitable for 3 Volt coin cell batteries like CR2032
Tin Nickel Plate Contacts
Battery Size: 23mm
Dimensions: 1.09" Dia x 1.22" L x 0.34" H (27.8mm x 31mm x 8.5mm)
This space saving design allows components to be placed under the holder. This is ideal when board space is more important then board height.
Features:
- Low profile for high density packaging
- Contacts feature clearly marked polarities to help guard against improper insertion.
- Reliable spring tension assures low contact resistance
- Retains battery securely to withstand shock and vibration
- Unique notched slots assure quick and easy battery insertion and replacement
- Base material UL Rated 94V-0.
- Impervious to most industrial solvents
- Operating temperature range: -60°F to +293°F (-50°C to +145°C)
- Advanced air-flow design pattern enhances air circulation around battery.
Applications:
- RTC Clocks
- Computer memory, power transfers, and back up systems
- Video and telecommunications power back up
- Preprogrammed video and electronic games
- Microprocessors and Microcomputer memory hold (desktop and laptop apps)
- Industrial and Commercial security and alarm systems
- Communications power sources PC/104 applications
