M93C76-WMN6T MICROWIRE serial access EEPROM
8-bit or 16-bit wide, 8 Kbit (1024 x 8) , VCC = 2.5 to 5.5V, –40 to 85 °C
Description
The M93C76 are electrically erasable programmable memory (EEPROM) devices. They are accessed through a Serial Data input (D) and Serial Data output (Q) using the MICROWIRE bus protocol
Key Features
- Industry standard MICROWIRE bus
- Single supply voltage: 2.5 V to 5.5 V for M93Cx6-W
- Dual organization: by word (x16) or byte (x8)
- Programming instructions that work on: byte, word or entire memory
- Self-timed programming cycle with auto-erase: 5 ms
- READY/BUSY signal during programming
- 2 MHz clock rate
- Sequential read operation
- Enhanced ESD/latch-up behavior
- More than 1 million write cycles
- More than 40 year data retention

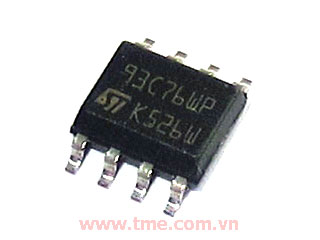

- Packages SO8
