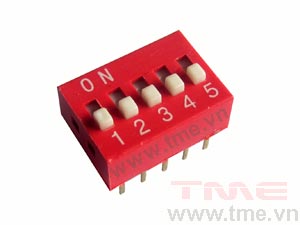

DIP Swich 5 Slide type RED color


MECHANICAL

• Operation Force: 800g Max
• Stroke: 2.00mm
• Operation temp: -20degree ~ 70degree
• Storage Temp: -40degree to 85degree

MATERIALS

BASE: Engineering plastics,Black.
COVER: Engineering plastics,Red.
BUTTON: Engineering plastics,White.
TERMINAL: Alloy copper,Gold plating.

ELECTRICAL

• Electrical Life: 2000 operations cycles per switch.
• Non-Switching Rating: 100mA,50VDC
• Switching Rating: 25mA,24VDC
• Contact Resistance: 50m Max,at initial;100m Max,after life test.
• Insulation Resistance: 100m,500VDC
• Dielectric Serength: 500VCD/1 minute
• Capacitance: 5pF Max.
• Circuit:Single pole single throw.

SOLDERING AND CLEANING PROCESSES

• Keep all switch contacts in their "OFF" position for all operation .
• Wave Soldering: Recommended Solder Temperature at 260degree Max.5 seconds for IC type.
• Hand Soldering: Use a soldering iron of 30 watts, controlled at 320degree approximately 2 seconds,while applying solder.
• Cleaning Process: Flux clean using force rinse,high agitation or triple bath cleaning mathod.
• Freon TF or TE give excellent results.When vapor methods are used do not subject the switch to solvents at temperature above 51degree.

PACKING

• All DIP switches are packed in standard IC tube.
• ? pcs / Tube, ? pcs/ Box
