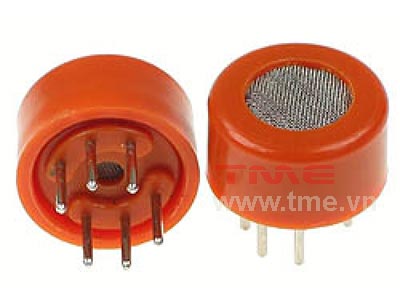

MQ-9 Semiconductor Sensor for CO/Combustible Gas
DataSheet
Sensitive material of MQ-9 gas sensor is SnO
2, which with lower conductivity in clean air. It make detection by method of cycle high and low temperature, and detect CO when low temperature (heated by 1.5V). The sensors conductivity is more higher along with the gas concentration rising. When high temperature (heated by 5.0V), it detects Methane, Propane etc combustible gas and cleans the other gases adsorbed under low temperature. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.
MQ-9 gas sensor has high sensitity to Carbon Monoxide, Methane and LPG. The sensor could be used to detect different gases contains CO and combustible gases, it is with low cost and suitable for different application.
Character
- Good sensitivity to CO/Combustible gas
- High sensitivity to Methane, Propane and CO
- Long life and low cost
- Simple drive circuit
Application
- Domestic gas leakage detector
- Industrial gas detector
- Portable gas detector
Technical Data
|
Model No.
|
MQ-9
|
|
Sensor Type
|
Semiconductor
|
|
Standard Encapsulation
|
Bakelite
|
|
Detection Gas
|
CO and combustible gas
|
|
Concentration
|
10-1000ppm CO
100-10000ppm combustible gas
|
|
Circuit
|
Loop Voltage
|
Vc
|
≤10V DC
|
|
Heater Voltage
|
VH
|
5.0V±0.2V ACorDCHigh
1.5V±0.1V ACorDCLow
|
|
Heater Time
|
TL
|
60±1SHigh90±1SLow
|
|
Load Resistance
|
RL
|
Adjustable
|
|
Character
|
Heater Resistance
|
RH
|
31Ω±3ΩRoom Tem.
|
|
Heater consumption
|
PH
|
≤350mW
|
|
Sensing Resistance
|
Rs
|
2KΩ-20KΩ(in 100ppm CO )
|
|
Sensitivity
|
S
|
Rs(in air)/Rs(100ppm CO)≥5
|
|
Slope
|
α
|
≤0.6(R300ppm/R100ppm CO)
|
|
Condition
|
Tem. Humidity
|
20±265%±5%RH
|
|
Standard test circuit
|
Vc:5.0V±0.1V
VHHigh: 5.0V±0.1V
VHLow: 1.5V±0.1V
|
|
Preheat time
|
Over 48 hours
|
