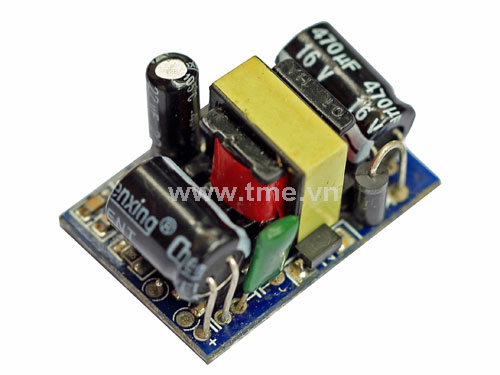

AC/DC-5V-700mA AC-DC Switching Power Supply Module AC110V/220 85-265V to DC5V
Features:
- Dimensions:3cm x 2cm x 1.8cm
- Input voltage AC 85V - 265V 50/60HZ
- Output voltage DC5V (± 0.2V)
- Output current 700mA
- Output power 3.5W
- Operating temperature: -20 ° C to +60 ° C
- Relative humidity :40-90% RH without cooling
- Input surge current: 20A
- Output voltage range: 4.80 ~ 5.2V
- Output ripple: 60mV
- Output voltage: +5 V
- Minimum current: 0A
- Maximum current: 700mA
- Output Power: 4.5W
- Output efficiency: 80%
- Switch Overshoot: 10%
- Output rise time: 100mS
Protection functions:
- Output Over Power Protection
- Short circuit protection
- Temperature protection
- Current protection
Applications
Industrial equipment, instrumentation, LED lighting, smart home, telecommunications, aerospace, automotive marine, medical devices, industrial computers, data acquisition, 3G communications, power equipment, security communications, PV power And other fields
