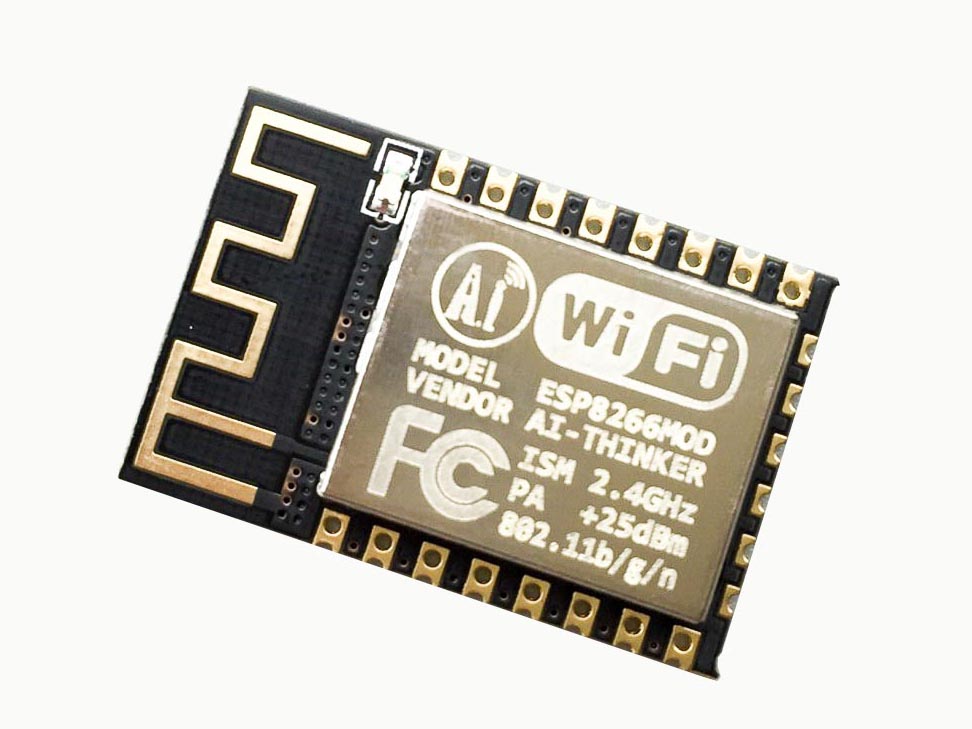

ESP-12F ESP8266 Remote Serial Port WIFI Module
Description
ESP-12E is a low power consumption of the UART-WiFi module, with very competitive prices in the industry and ultra
low power consumption technology, designed specifically for mobile devices and IOT applications, user's physical device
can be connected to a Wi-Fi wireless network, Internet or intranet communication and networking capabilities. ESP-07 the
use of small ceramic antenna package can support IPEX interface. users have a variety of installation options.
Features
- 802.11 b/g/n protocol
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- +19.5dBm output power in 802.11b mode
- Power down leakage current of < 10uA
- Integrated low power 32-bit MCU
- SDIO 2.0, SPI, UART
- STBC, 1x1 MIMO, 2x1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4μs guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
Applications
- Smart power plugs
- Home automation
- Mesh network
- Industrial wireless control
- Baby monitors
- IP Cameras
- Sensor networks
- Wi-Fi location-aware devices
- Security ID tags
- Wi-Fi position system beacons
