VR3296W-502 5K ohm Precision Trimmer Potentiometer, Top-adjust
Characteristics:
- Range of nominal resistance: 10 Ohms to 2M Ohms
- Resistance tolerance: ±10%
- Terminal resistance: 1%R or 2 Ohms
- Contact resistance variation: 3%R or 3 Ohms
- Insulation resistance: R1≥1G Ohms
- Withstand voltage: 101.3kPa/500V, 8.5kpa/315V
- Effective electrical travel: 210±100
- Rated maximum power working voltage: 250V +70V 0.5W +125W
- Temperature range: -55 to +125 degrees Celcius
- TCR: ±250ppm
- Temperature variation: R≤±2%RUab/UacR≤±1%
- Collision: 390m/s2, 4000uqw, R≤≥1%R
- Vibration: 10 to 2000Hz, 0.75mm, 98m/s2, 6h
- R≤±1%RUab/Uac≤±2%
- Climate category: R≤±3%RR1≥100M
- Electrical endurance: 70W, 0.5W, 1,000h, R≤±3%R
- Mechanical endurance: 100cycles, R≤±3%R Steady damp-heat
- R≤≥3%R, R1≥100M
- Total mechanical travel: 2500±100
- Starting torque: ≤20mNm
- Stop torque: ≥50mN?m
- Standard packaging: 50 pieces per tube
|

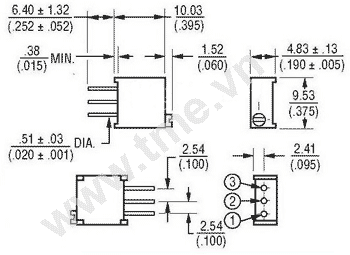

Dimensions in mm (inches)
 |
