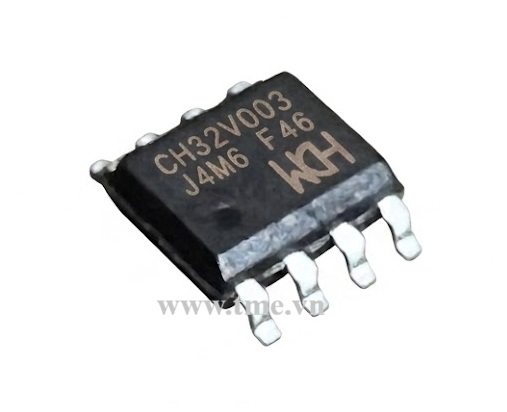

CH32V003A4M6 RISC-V - Microcontroller IC 32-Bit 48MHz 16KB (16K x 8) FLASH,
8-SOP
Overview
The CH32V003 series is an industrial-grade general-purpose microcontroller based on the QingKe RISC-V2A core, supporting a 48MHz system clock frequency. It features wide voltage operation, 1-wire debugging, low-power consumption, and ultra-compact packaging. It provides commonly used peripheral functions, including one DMA controller, 1×10-bit ADC, 1 OPA, multiple timer units, and standard communication interfaces such as USART, I2C, and SPI. The product operates at a rated voltage of 3.3V or 5V within an industrial-grade temperature range of -40°C to 85°C.
System Block Diagram
Features
- QingKe 32-bit RISC-V2A processor, support 2-level interrupt nesting
- Up to 48MHz system main frequency
- 2KB SRAM, 16KB Flash
- Supply voltage: 3.3/5V
- Multiple low-power modes: Sleep/Standby
- Power on/off reset, programmable voltage monitor
- 1 set of 1-channel general-purpose DMA
- 1 set of OPAs
- 1 set of 10-bit ADC
- 1×16-bit advanced-control timer and 1×16-bit general-purpose timer
- 2 Watchdog timers and 1×32-bit system time base timer
- 1 USART interface, 1 I2C interface, 1 SPI interface
- 18 I/O ports, can be mapped to 1 external interrupt
- 96-bit chip unique ID
- 1-wire serial debug interface
- Package: TSSOP20, QFN20, SOP16, SOP8
Selection Guide
Development Material
- Datasheet: CH32V003DS0.PDF, CH32V003RM.PDF
- CH32V003 Evaluation board description and reference application routines: CH32V003EVT.ZIP
- Integrated Development Environment (IDE): MounRiver Studio(MRS)
